Gear Box Series

Gear Box Series

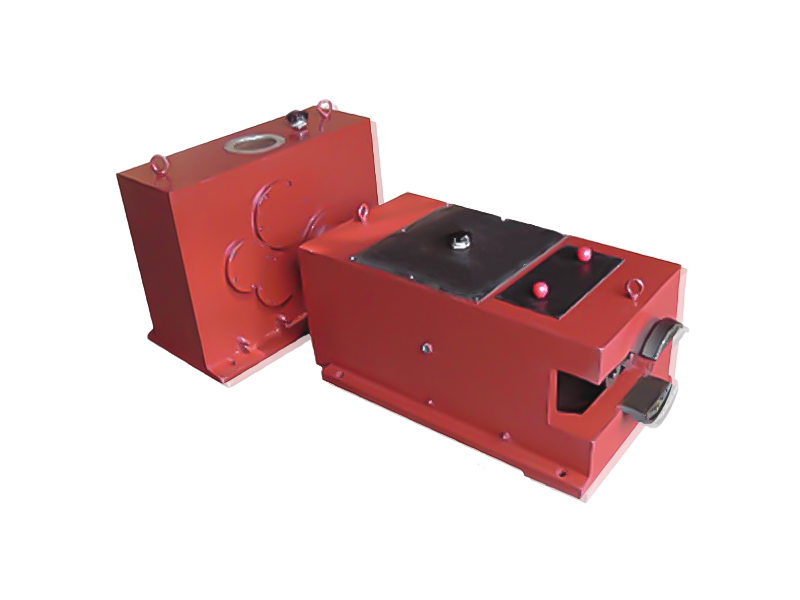

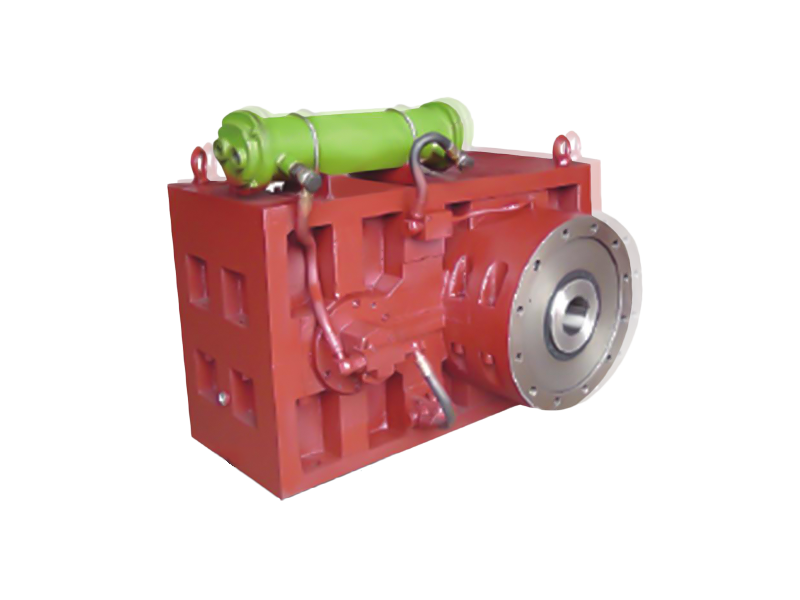

Product Details

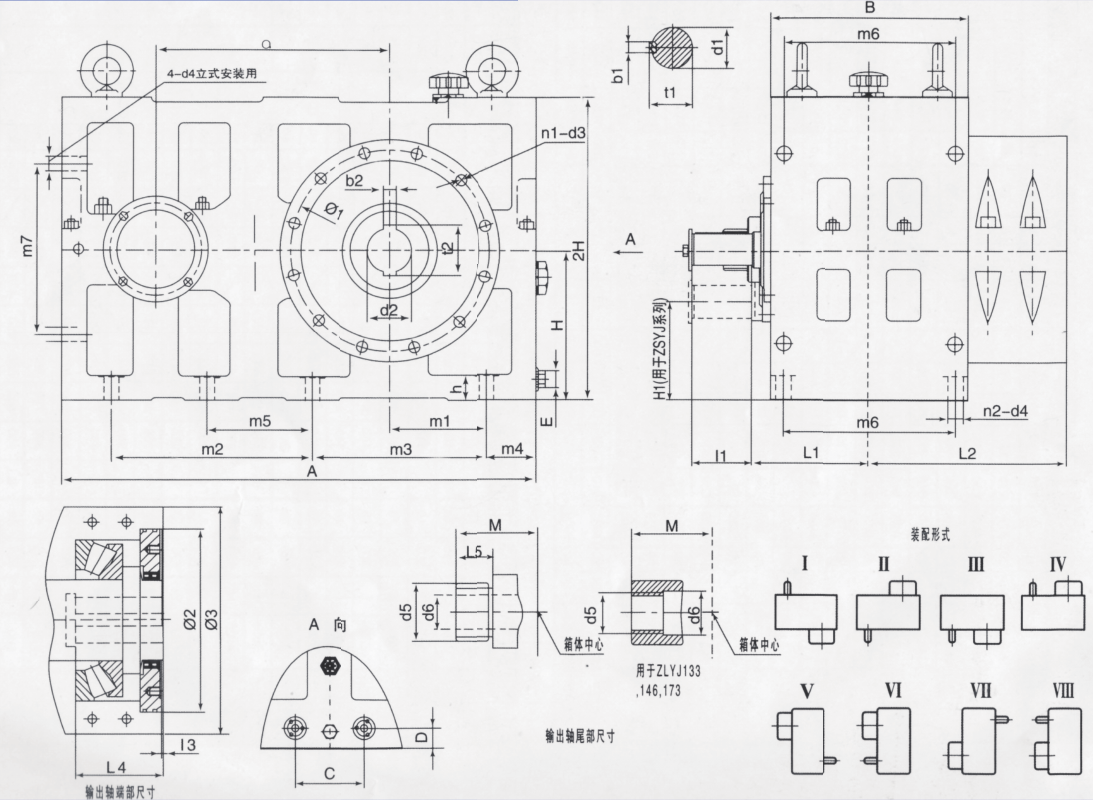

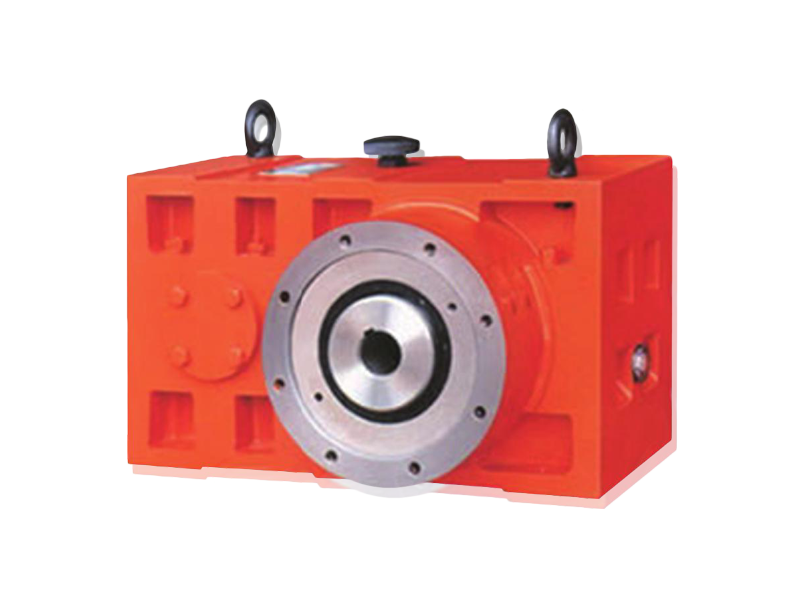

Specification a Dimensions Foot installation size Input shaft size
A B H H1 h n2 d4 m1 m2 m3 m4 m5 m6 m7 L1 I1 d1(m6) t1 b1
ZLYJ112 184 426 170 130 - 18 4 14 96 - 326 50 - 136 170 106 60 28 31 8
ZLYJ133 218 478 215 140 - 20 6 16 104 185 185 61 - 180 184 125 60 28 31 8
ZLYJ146 256 560 250 160 - 22 6 16 118 190 235 72 - 210 210 148 70 32 35 10
ZLYJ173 285 576 256 170 - 22 6 18 113.5 220 220 68 - 225 214 148 80 38 41 10
ZLYJ200 340 750 340 240 - 36 6 18 150 275 275 100 - 290 310 200 80 45 48.5 14
ZLYJ225 385 800 360 250 - 36 6 26 165 310 310 90 - 315 330 205 110 55 59 16
ZLYJ250 430 930 380 280 - 45 6 26 205 360 360 105 - 330 340 220 110 60 64 18
ZLYJ280 480 970 410 300 - 50 6 30 200 385 385 100 - 355 380 240 125 65 69 18
ZLYJ315 539 1160 450 350 - 55 6 30 260 450 450 130 - 390 460 250 140 75 79.5 20
ZLYJ330 575 1160 450 350 - 60 6 30 225 450 450 130 - 390 425 260 170 85 90 22
ZLYJ375 625 1280 466 400 - 60 8 32 250 475 500 165 265 400 500 265 170 85 90 22
ZLYJ420 695 1420 550 460 - 60 8 32 305 580 540 150 328 480 - 310 130 95 100 25
ZLYJ450 765 1550 600 500 - 60 8 32 300 600 600 190 300 520 - 350 130 100 106 28
ZLYJ630 1070 2000 770 630 - 80 8 48 400 850 800 200 450 670 - 430 165 120 127 32
ZLYJ450 765 1550 600 500 276 60 8 32 300 600 600 190 300 520 - 350 105 75 79.5 20
ZLYJ560 960 1850 610 580 324 80 8 48 390 730 780 170 - 510 - 355 130 95 100 25
ZLYJ630 1070 2000 770 630 350 80 8 48 400 850 800 200 450 670 - 430 165 110 116 28
Specification Output shaft size Output shaft tail size Cooling pipe joint Cooling pipe joint Average weight Lubricating oil quantity
d2(H8） t2 b2(F9) L4 d5 d6 L5 M L2 Φ1 Φ2(H7) I3 Φ3 n1 d3 C D E kg L
ZLYJ112 35 38.3 10 52 M16 18 - 125 203 185 160 8 210 6 M10 - - - 95 4
ZLYJ133 38 41.3 10 80 M18 20 - 137 205 205 180 8 230 8 M12 - - - 144 7
ZLYJ146 45 48.8 14 120 M18 20 - 167 245 230 200 8 260 8 M12 - - - 205 10
ZLYJ173 50 57.6 14*2 140 M20 25 - 167 250 260 230 8 300 8 M16 85 38 ZG1  2'' 256 12
ZLYJ200 60 68.8 18*2 170 M85*4 40 50 250 330 300 270 8 350 12 M16 120 40 500 28
ZLYJ225 70 78.8 18*2 170 55 265 355 370 330 8 420 12 M20 140 50 650 33
ZLYJ250 80 90.8 22*2 180 285 380 370 330 8 420 12 M20 160 50 ZG3 4'' 815 46
ZLYJ280 90 100.8 25*2 180 300 405 400 360 8 450 12 M24 160 50 1020 55
ZLYJ315 100 112.8 28*2 200 M90*4 335 440 405 365 8 450 12 M24 160 55 1410 84
ZLYJ330 110 122.8 28*2 220 M85*4 60 60 350 445 450 400 10 500 12 M24 160 55 1520 87
ZLYJ375 110 122.8 28*2 255 M90*4 345 445 450 400 10 500 12 M24 160 55 1800 110
ZLYJ420 120 134.8 32*2 270 370 535 580 500 10 660 12 M30 200 60 2750 166
ZLYJ450 170 188.8 40*2 250 425 600 610 500 15 700 12 M30 200 60 3560 215
ZLYJ630 180 200.8 45*2 340 520 760 720 650 25 805 12 M36 300 80 - -
ZLYJ450 170 188.8 40*2 250 425 600 610 520 10 700 12 M36 200 60 3800 210
ZLYJ560 160 178.8 40*2 300 435 670 720 620 25 805 12 M36 270 80 - -
ZLYJ630 180 200.8 45*2 340 520 760 720 650 25 805 12 M36 300 80 - -
